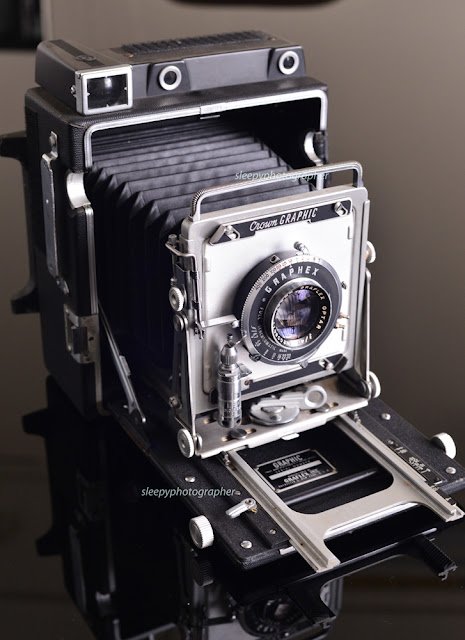

Graflex Crown Graphic 4x5 is my first large format camera. I love its folding system, simple and practical and not heavy.
The camera original lens is Graflex Optar 135mm f4.7 made by Wollensak.
here the camera with wider lens, Scheider Kreuznach 90mm f8 Super Angulon
and this is my first shot with shanghai 100 film
sleepy photographer
Thursday, February 28, 2013
Friday, June 1, 2012
Canon EF (Canon SLR Film Camera)
Canon EF (Film SLR Camera)
Type | 35mm focal-plane shutter SLR camera |
Picture Size | 24 x 36 mm |
Normal Lens | Canon 55mm f/1.2 SSC, FD 50mm f/1.4 SSC |
Lens Mount | FD mount |
Shutter | Vertical-travel focal-plane shutter with metal curtains. X (at 1/125 sec.), B, 30, 15, 8, 4, 2, 1, 1/2, 1/4, 1/8, 1/15, 1/30, 1/60, 1/125, 1/250, 1/500, 1/1000 sec. Hybrid shutter (using Copal Square) with mechanical shutter speeds from 1/2 to 1/1000 sec. and B, and electronic shutter speeds from 30 to 1 sec. Built-in self-timer (self-timer lever also functions as a stop-down lever). Multiple exposures enabled. |
Flash Sync | X-sync automatic-switching sync contacts with German socket and hot shoe. |
Viewfinder | Fixed eye-level pentaprism. 0.82x magnification, 92% vertical coverage, 93% horizontal coverage. Microprism rangefinder at center of fresnel matte screen. Metering needle, stopped-down metering index, shutter speed scale, aperture scale, overexposure and underexposure warnings provided. Mirror lockup and eyepiece shutter provided. |
Exposure Control | SPC (silicon photocell) for TTL full-aperture metering with shutter speed-priority AE or TTL stopped-down match needle manual metering (centerweighted averaging). Metering range at ISO 100 and f/1.4: EV 2 - 18. Film speed range from ISO 12 to 3200. |
Power Source | Two 1.3 V HD mercury cells |
Film Rewind | Camera-top crank. |
Film Loading & Advance | Slotted take-up spool. Advances with camera-top lever's 120 stroke (single stroke only). Ready position at 13. |
Frame Counter | Counts up. Resets automatically when camera back is opened. |
Film Rewind | Camera-top crank. * A red LED on the camera top blinked during battery checks, self-timer operation, and 1 sec. and slower shutter speeds. |
Dimensions & Weight | 147 x 96 x 48 mm, 760 g |
